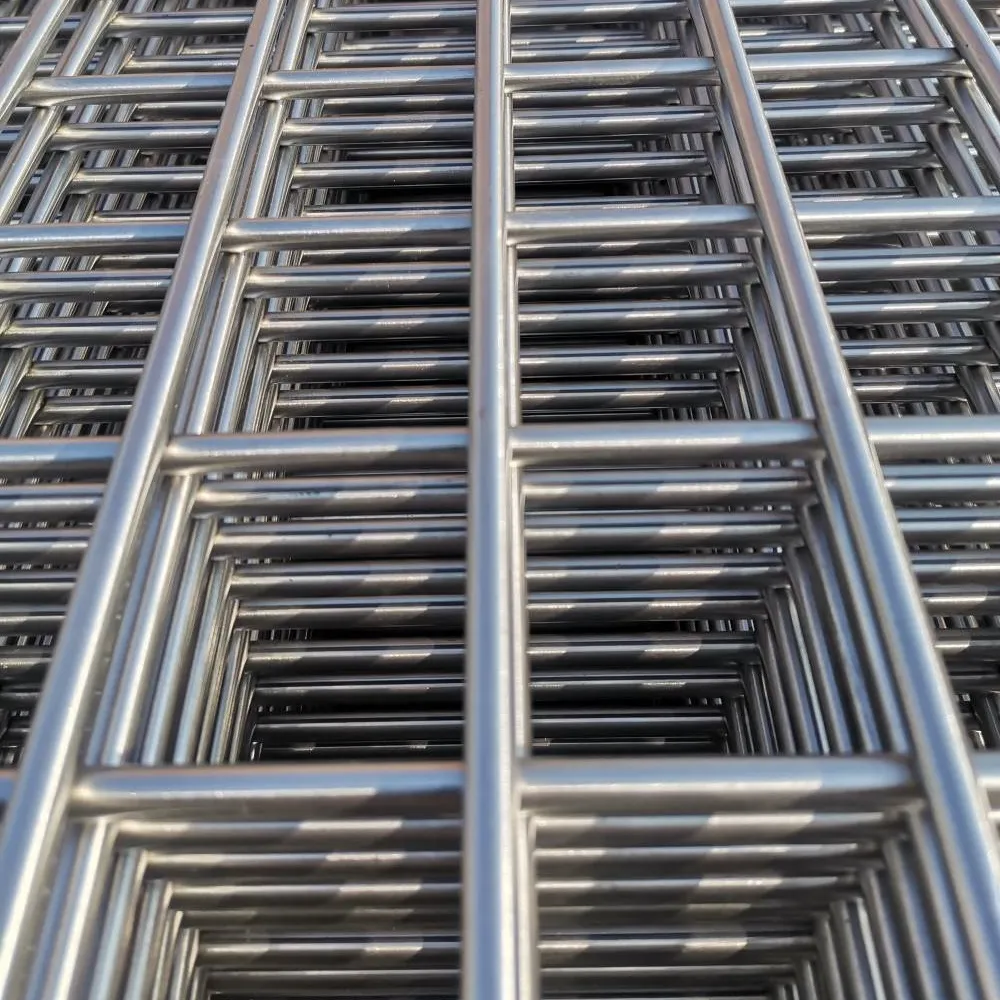

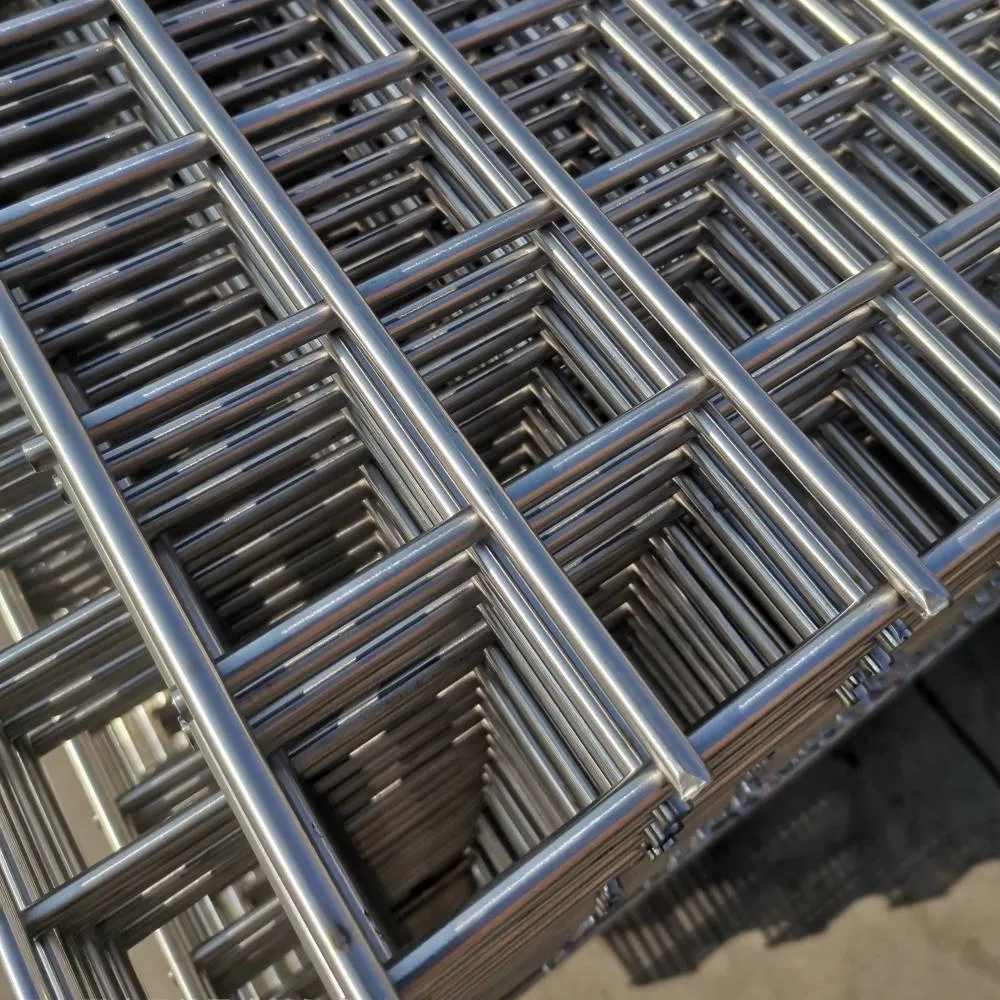

Stainless steel welded wire mesh common materials including SS304, 316, 304L and 316L, etc.
Among them, 304 is the most commonly used material, then 316.
For those environments with high requirements for stress corrosion cracking, 304L and 316L are better choices considering their low-carbon character.
Compared with galvanized welded mesh, stainless steel welded mesh is more rust-resistant. In a humid environment without pollution, stainless steel can keep its surface bright for life, while galvanized mesh will easily get rust once the zinc layer is destroyed, especially the welding joints.
|
Mesh Opening
|
Wire Diameter
|
Approx. Weight
|
|
in.
|
mm
|
in.
|
mm
|
kg/m2
|
lb/100 ft2
|
|
1/4
|
6.4
|
0.0217
|
0.55
|
1.66
|
34
|
|
1/3
|
8.5
|
0.0317
|
0.81
|
0.65
|
13
|
|
3/7
|
10.6
|
0.0354
|
0.90
|
1.21
|
25
|
|
1/2
|
12.7
|
0.0258
|
0.66
|
1.86
|
38
|
|
1/2
|
12.7
|
0.0317
|
0.81
|
1.66
|
34
|
|
1/2
|
12.7
|
0.041
|
1.04
|
2.54
|
52
|
|
1/2
|
12.7
|
0.062
|
1.57
|
1.22
|
25
|
|
1/2 x 1
|
12.7 x 25.4
|
0.041
|
1.04
|
1.32
|
27
|
|
1/2 x 1
|
12.7 x 25.4
|
0.057
|
1.45
|
0.70
|
14
|
|
1/2 x 1
|
12.7 x 25.4
|
0.062
|
1.57
|
0.47
|
10
|
|
5/8
|
15.9
|
0.047
|
1.20
|
1.11
|
23
|
|
3/4
|
19.0
|
0.041
|
1.04
|
1.11
|
23
|
|
3/4
|
19.0
|
0.057
|
1.45
|
1.27
|
26
|
|
3/4
|
19.0
|
0.062
|
1.57
|
1.22
|
25
|
|
1 x 1/2
|
25.4 x 12.7
|
0.057
|
1.45
|
0.69
|
14
|
|
1 x 1/2
|
25.4 x 12.7
|
0.062
|
1.57
|
1.07
|
22
|
|
Other specifications can be customized according to customer’s requirements.
|
Stainless steel welded wire mesh is widely used in industry and commercial fields, such as construction mesh, bird mesh, metal baskets, medical sterilization baskets, cooking baskets, fry baskets, wire mesh fences, gutters, rodent-proof and snake-proof mesh, machine guards, poultry cages, plants protect mesh and livestock fence, etc.
